HomeGlıde

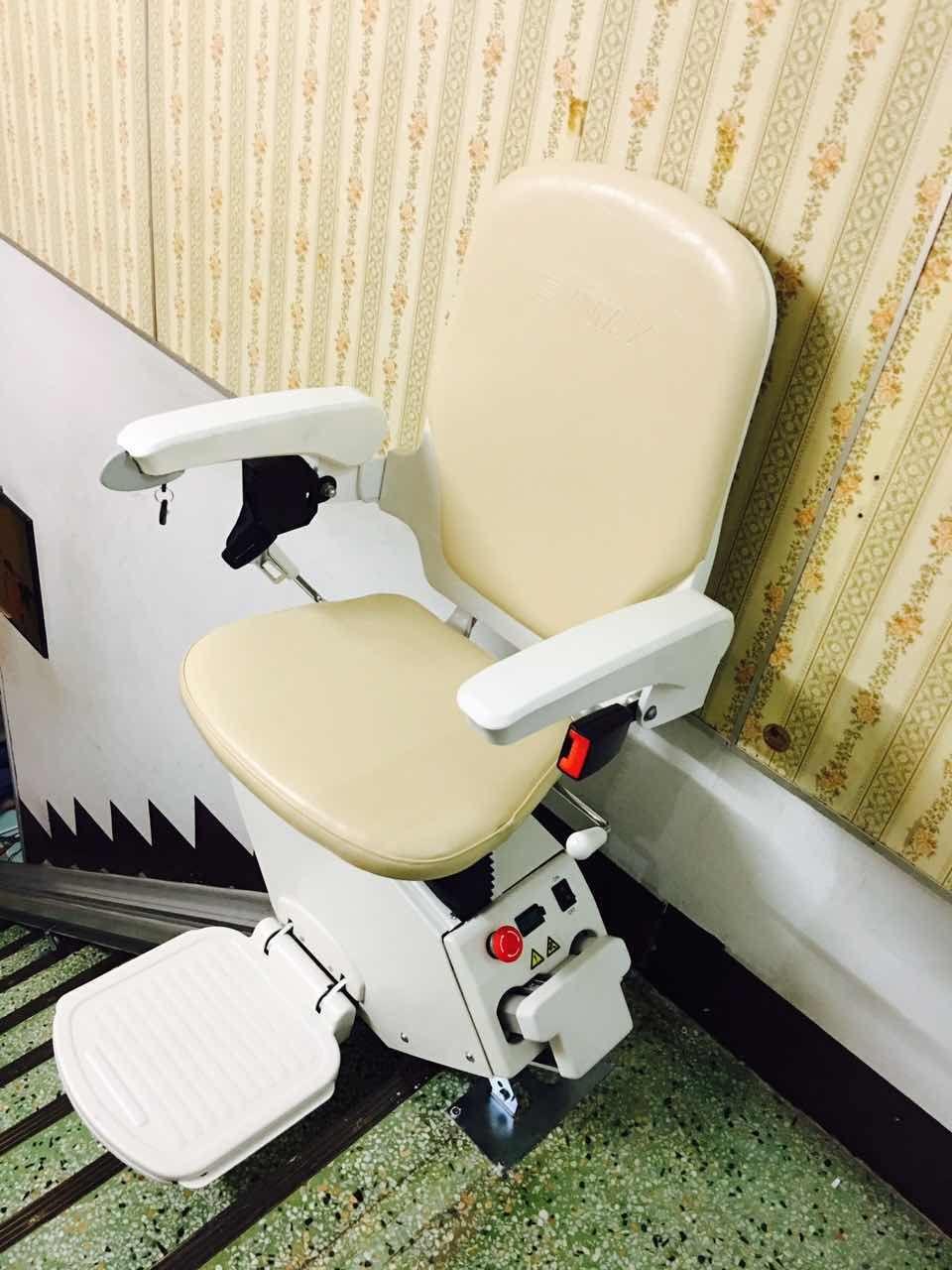

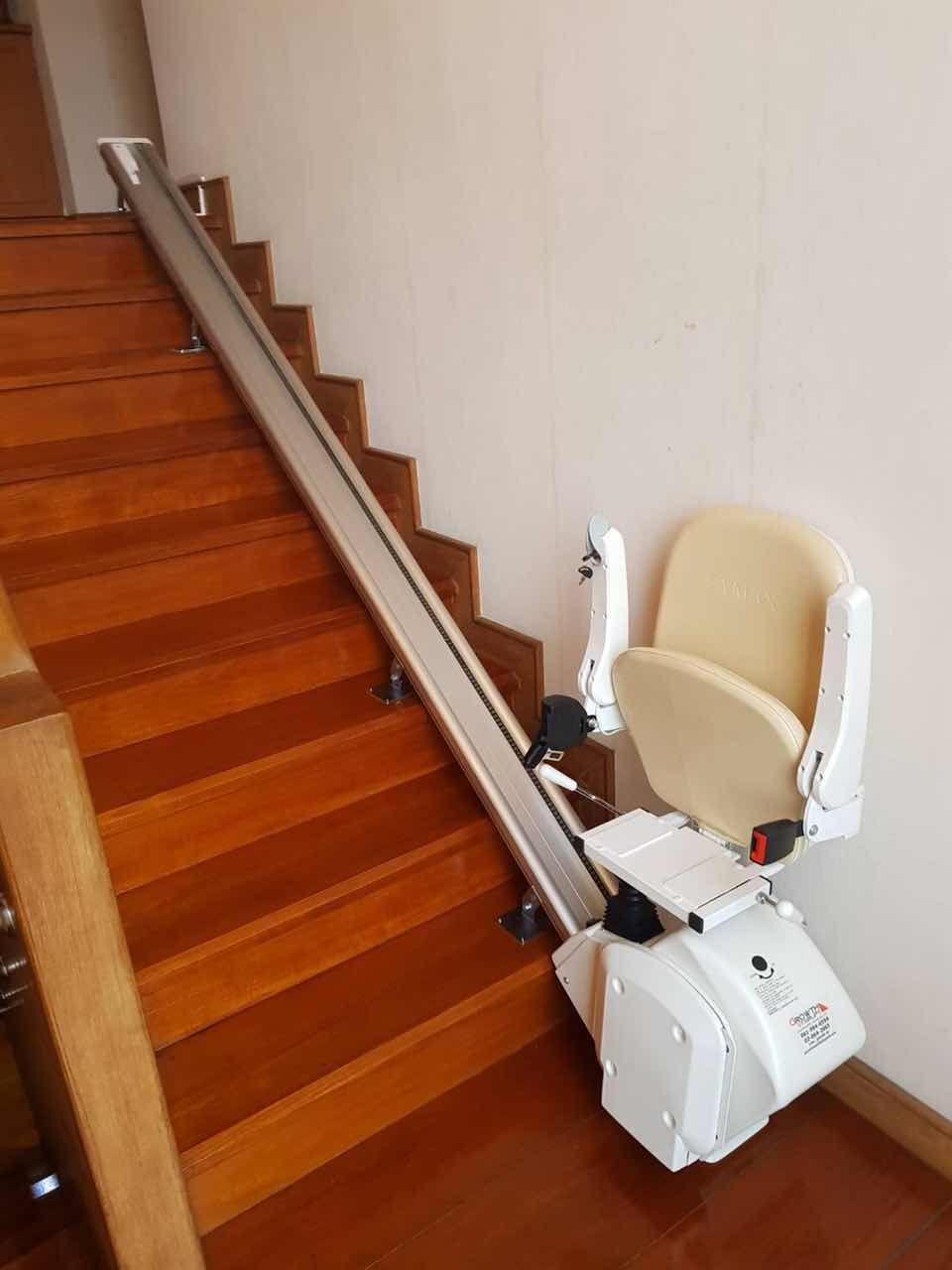

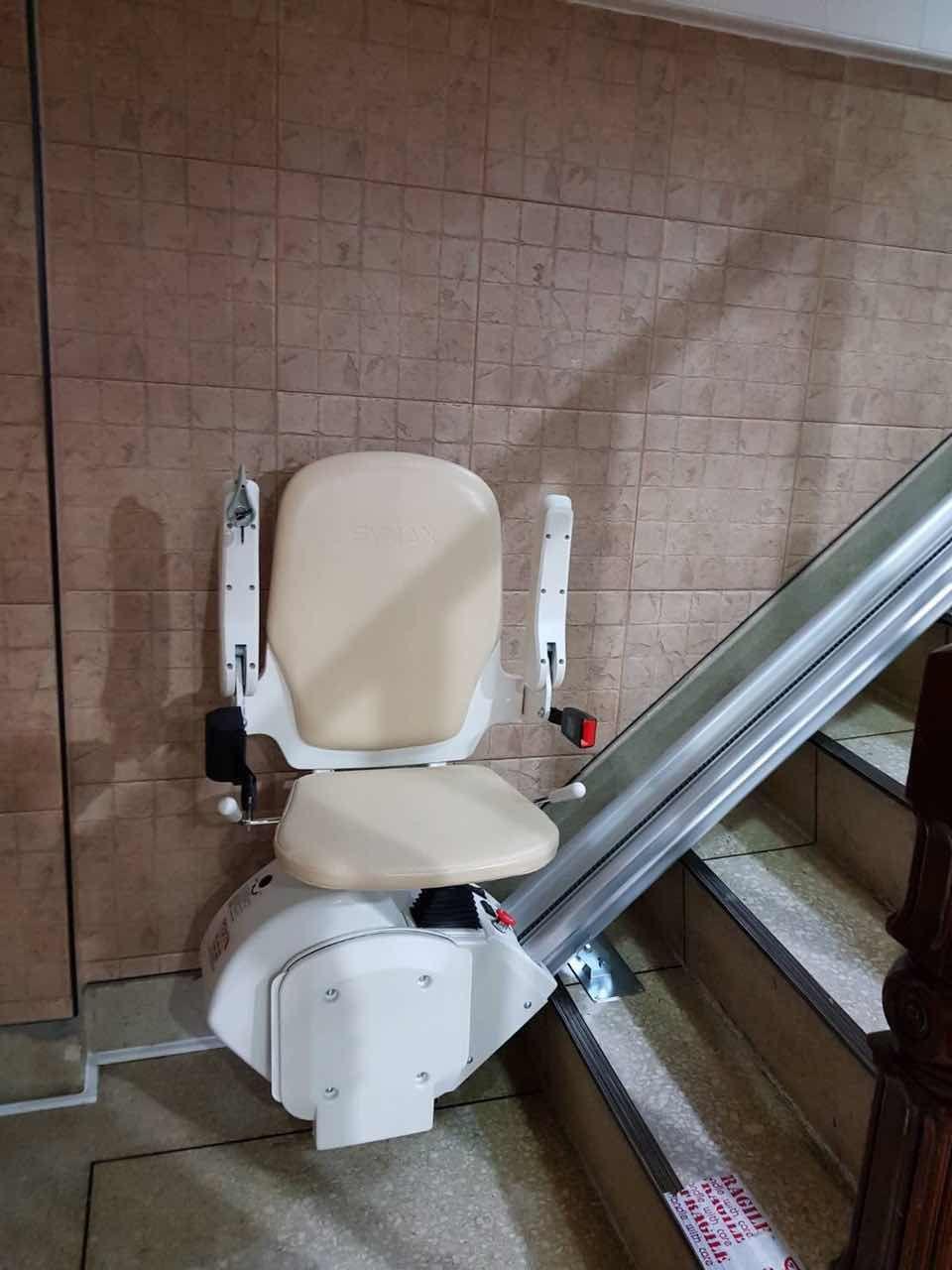

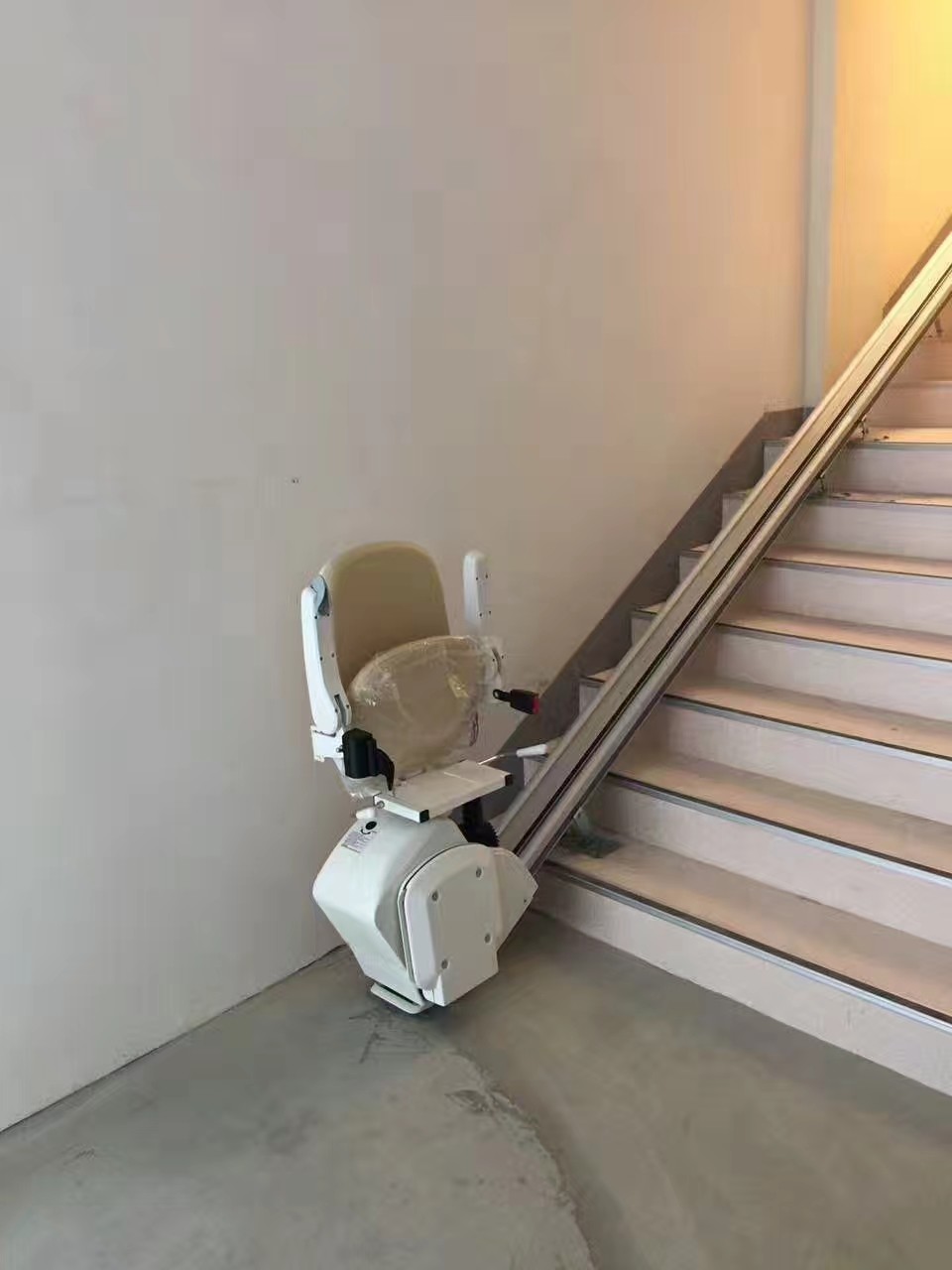

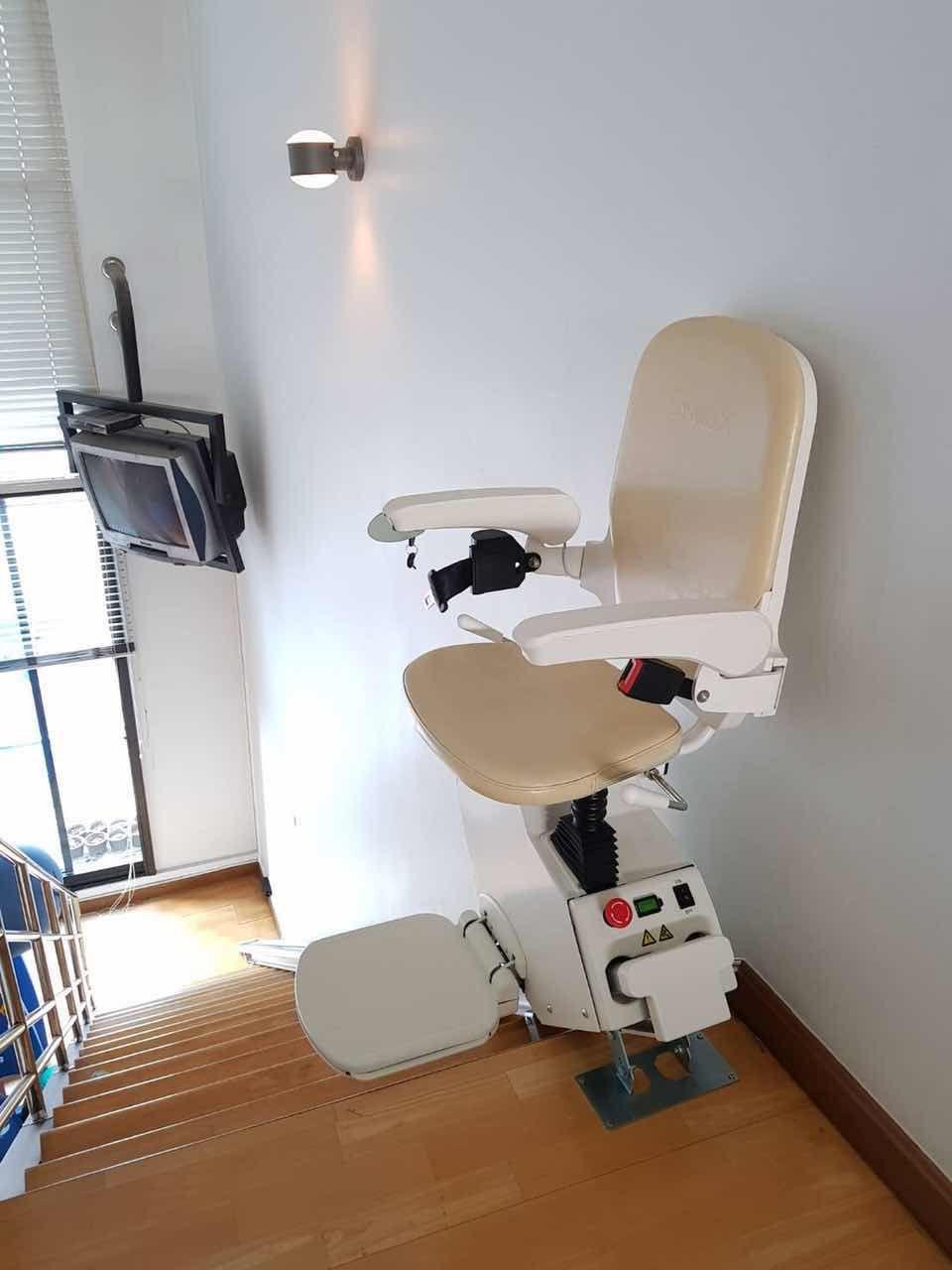

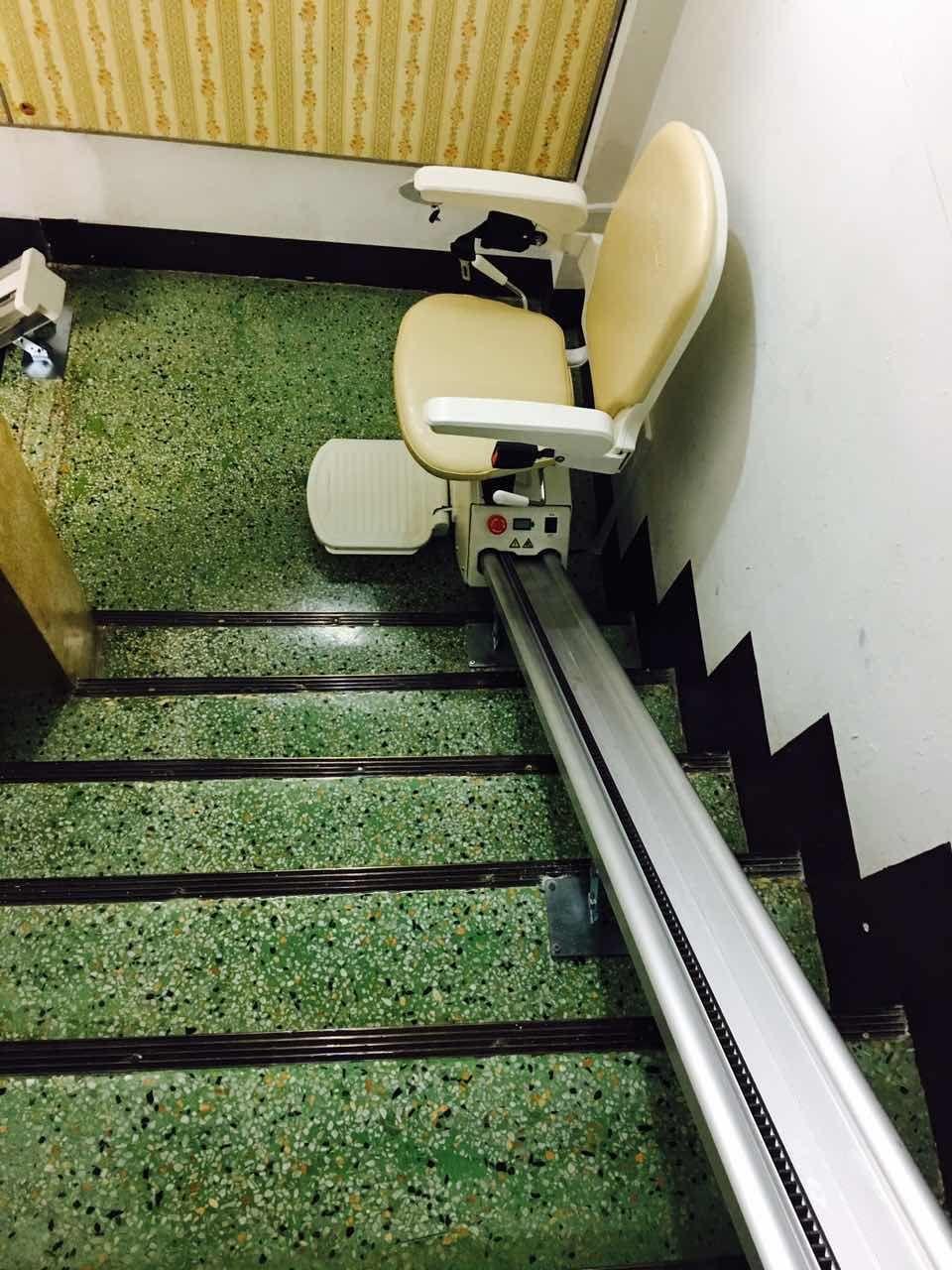

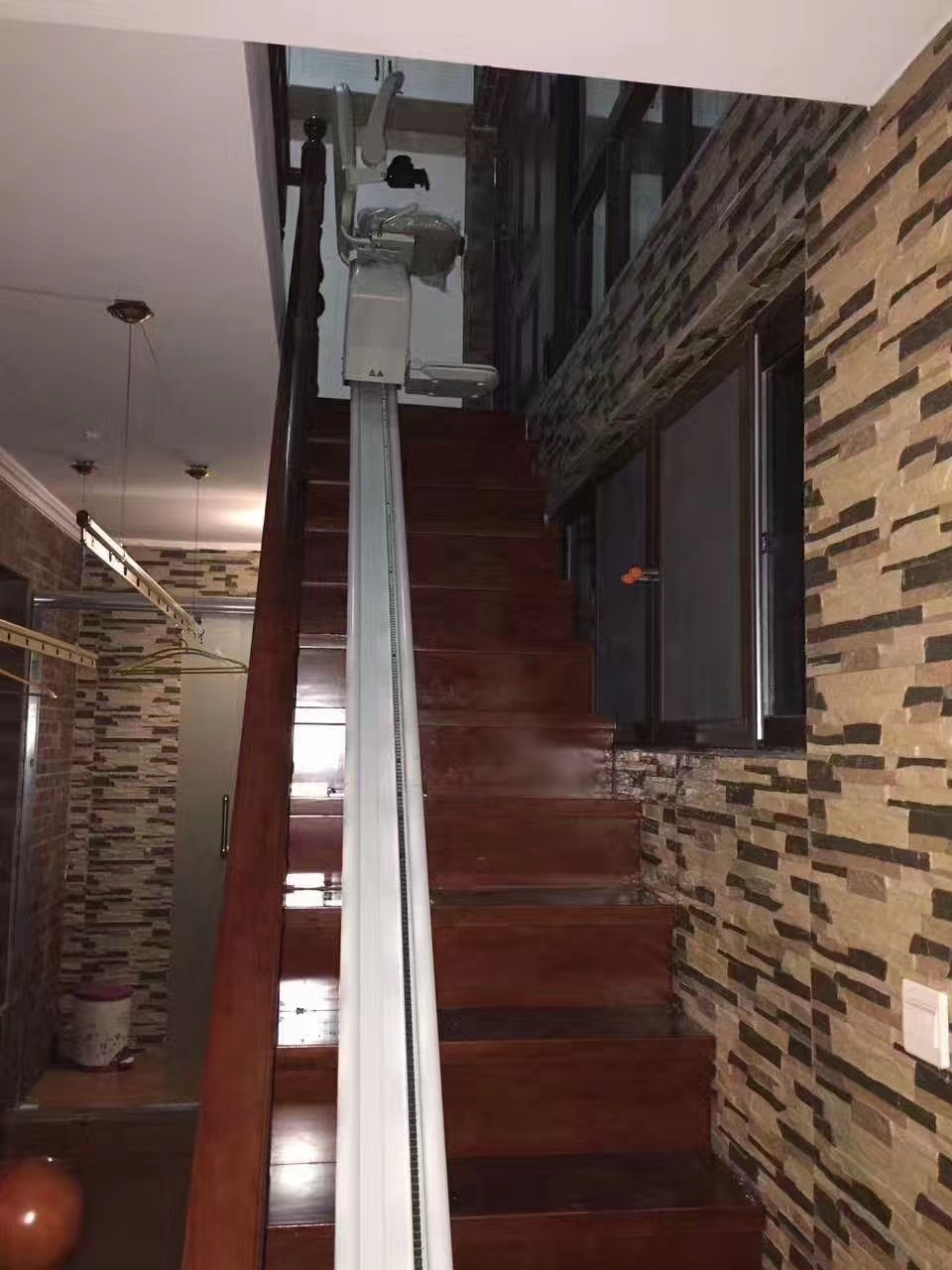

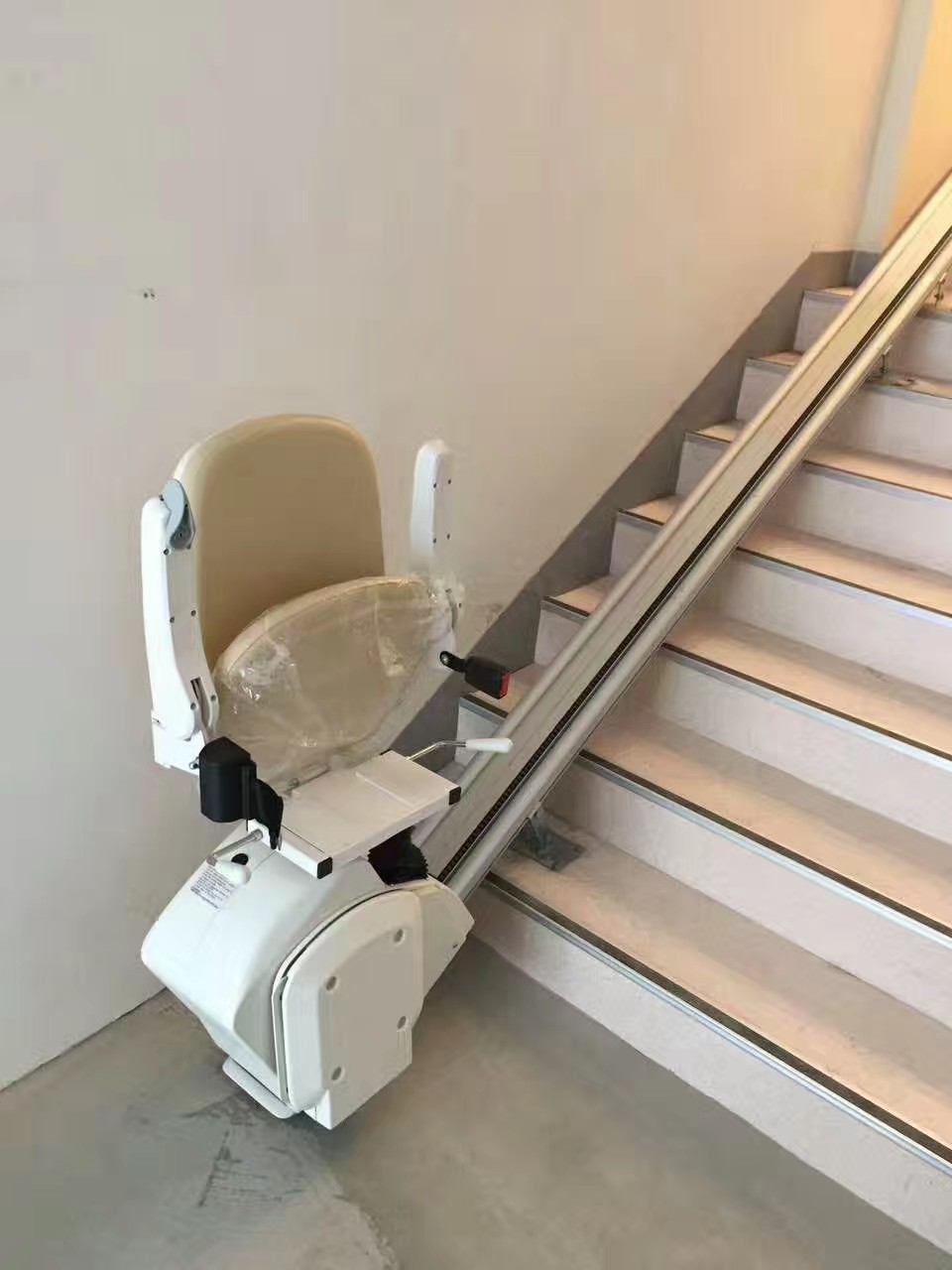

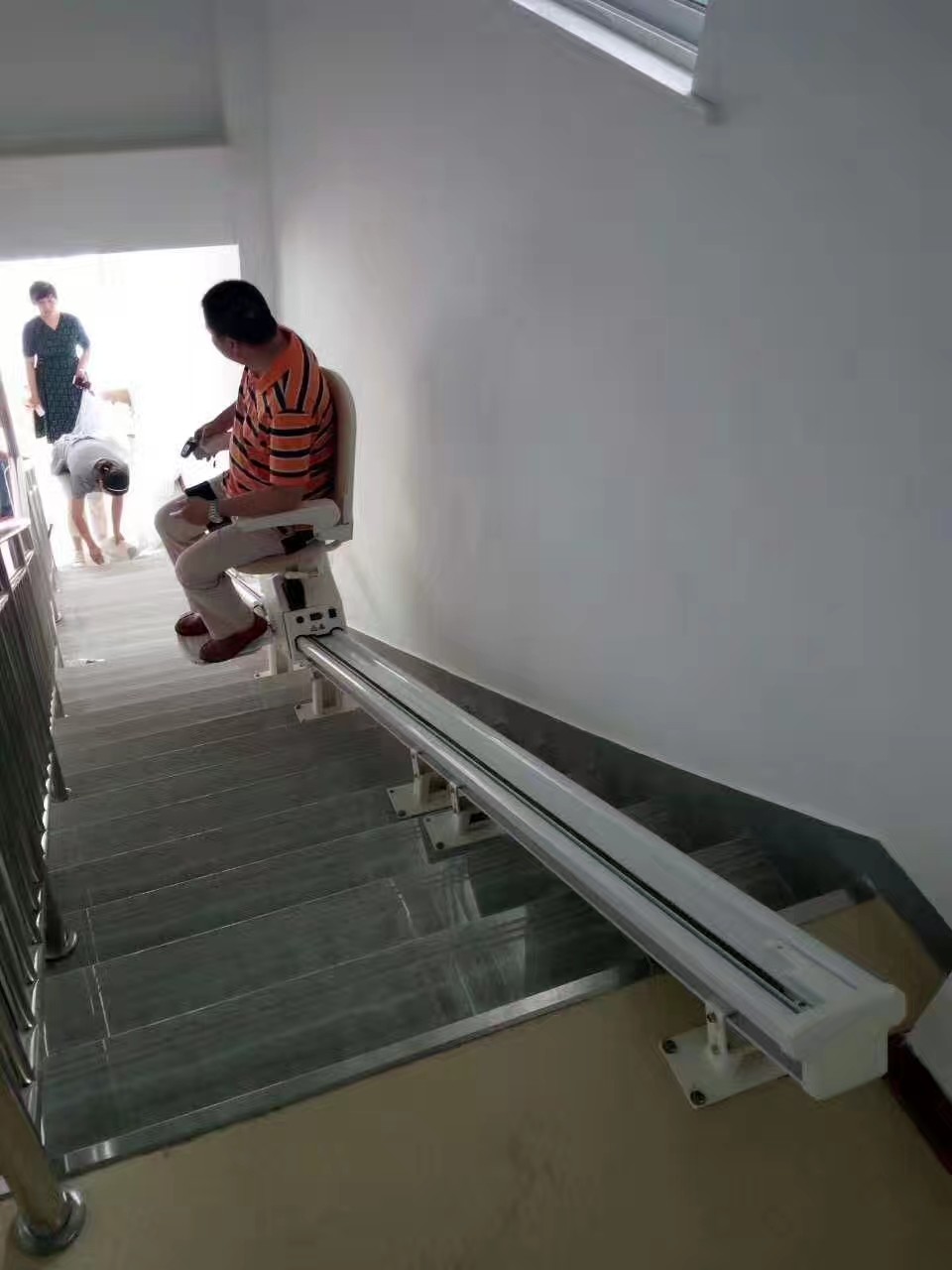

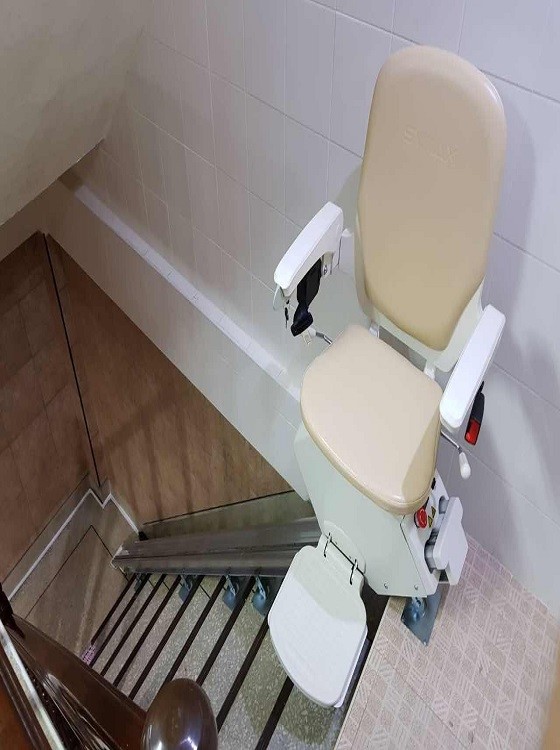

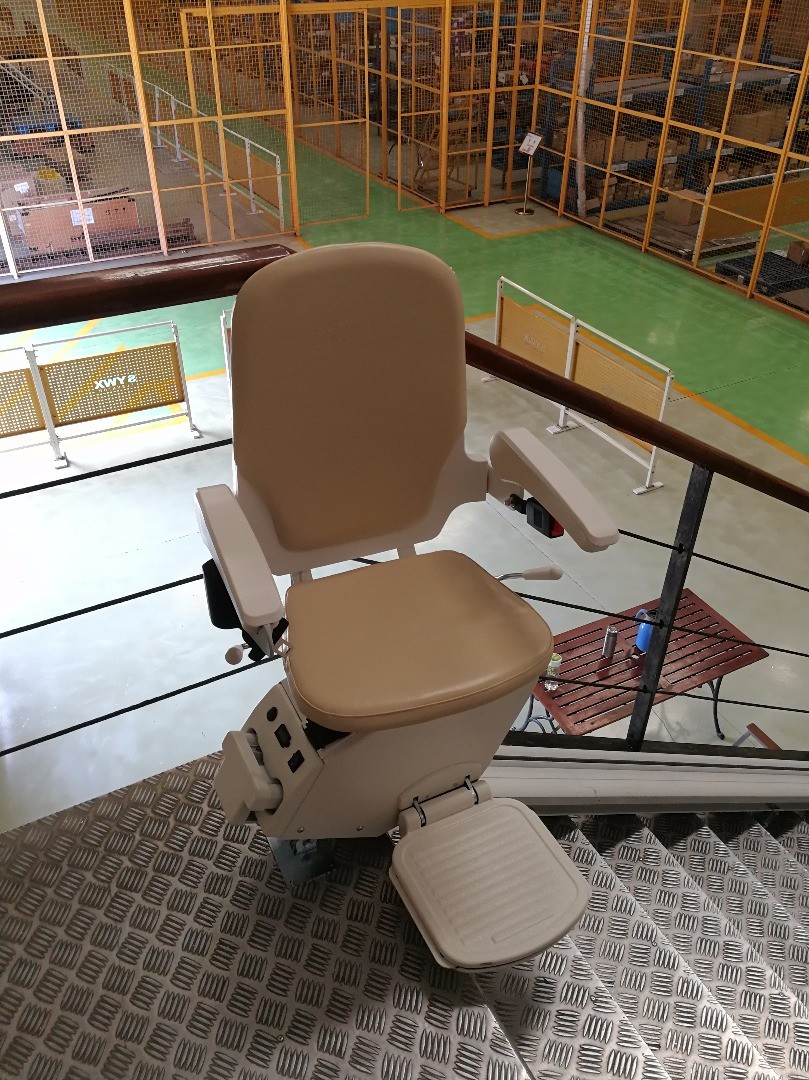

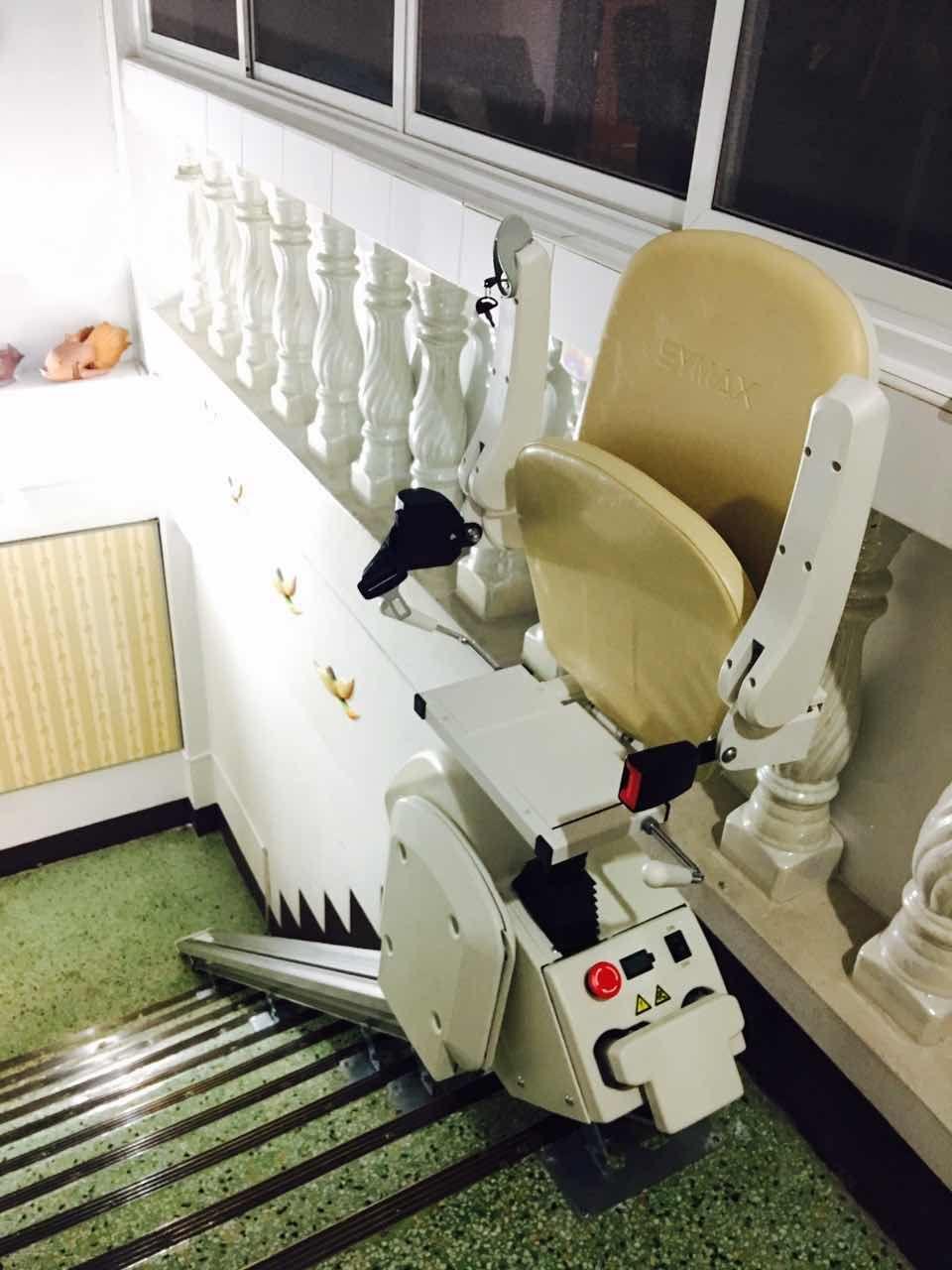

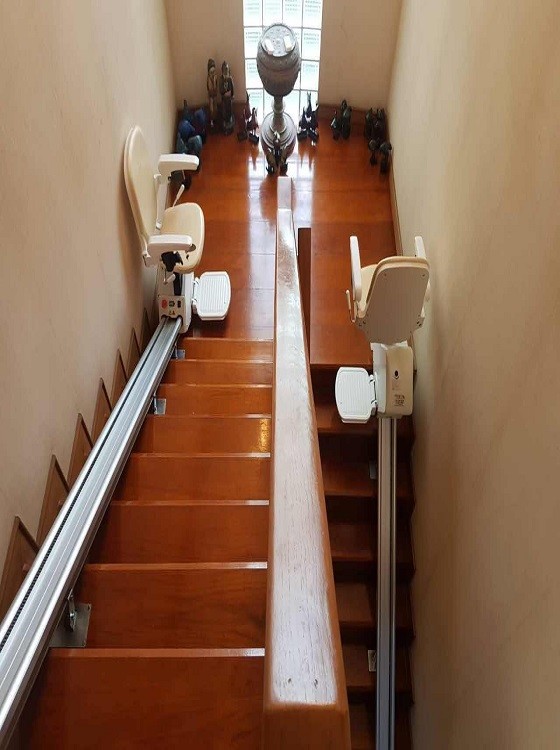

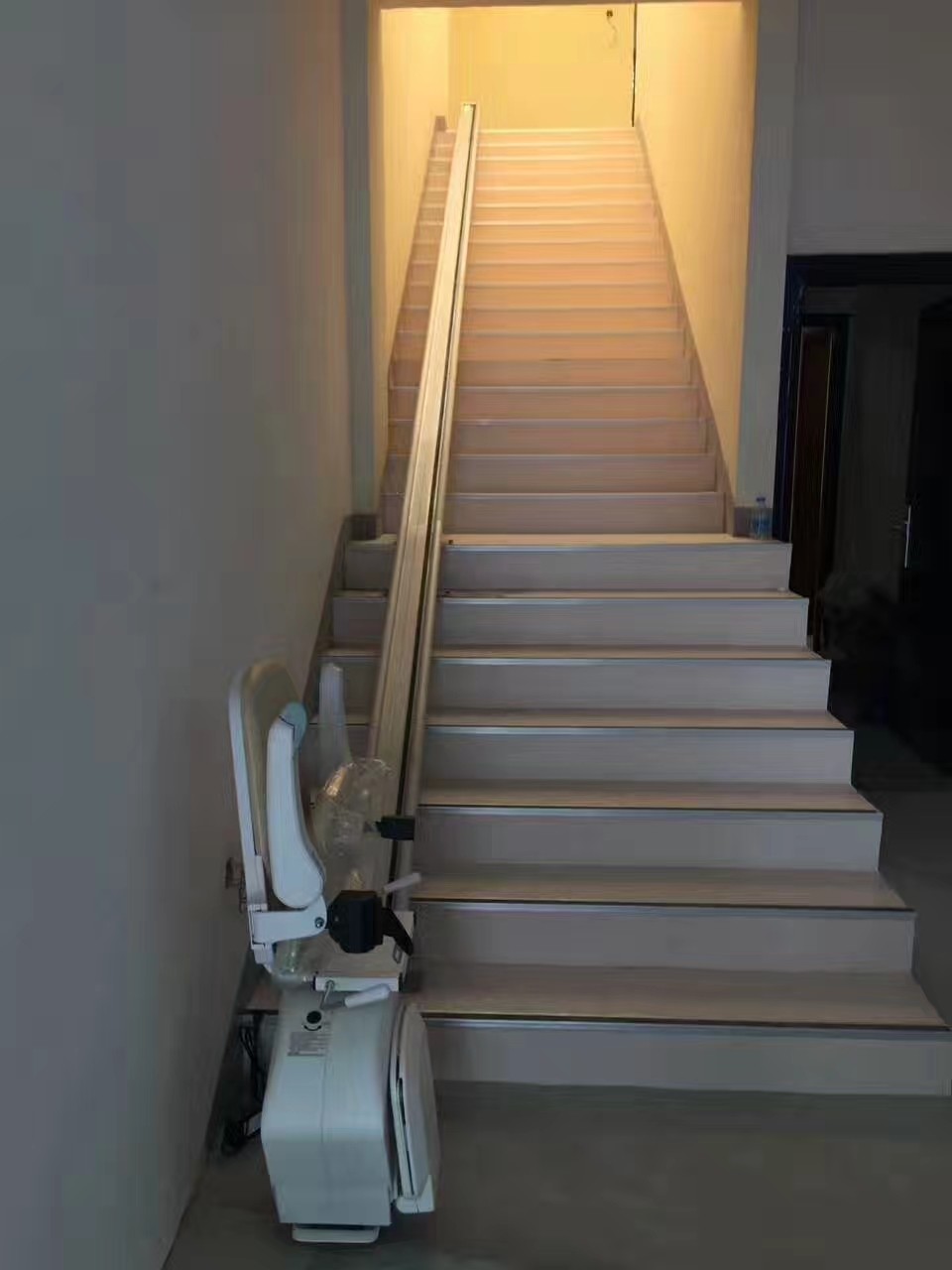

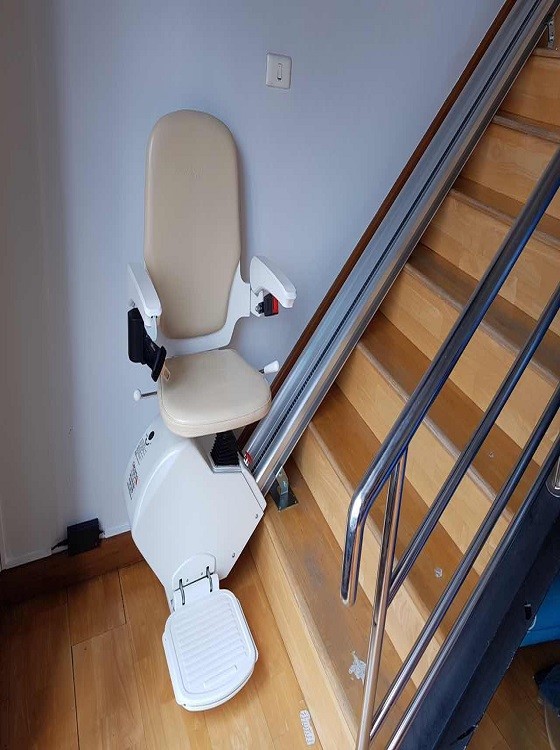

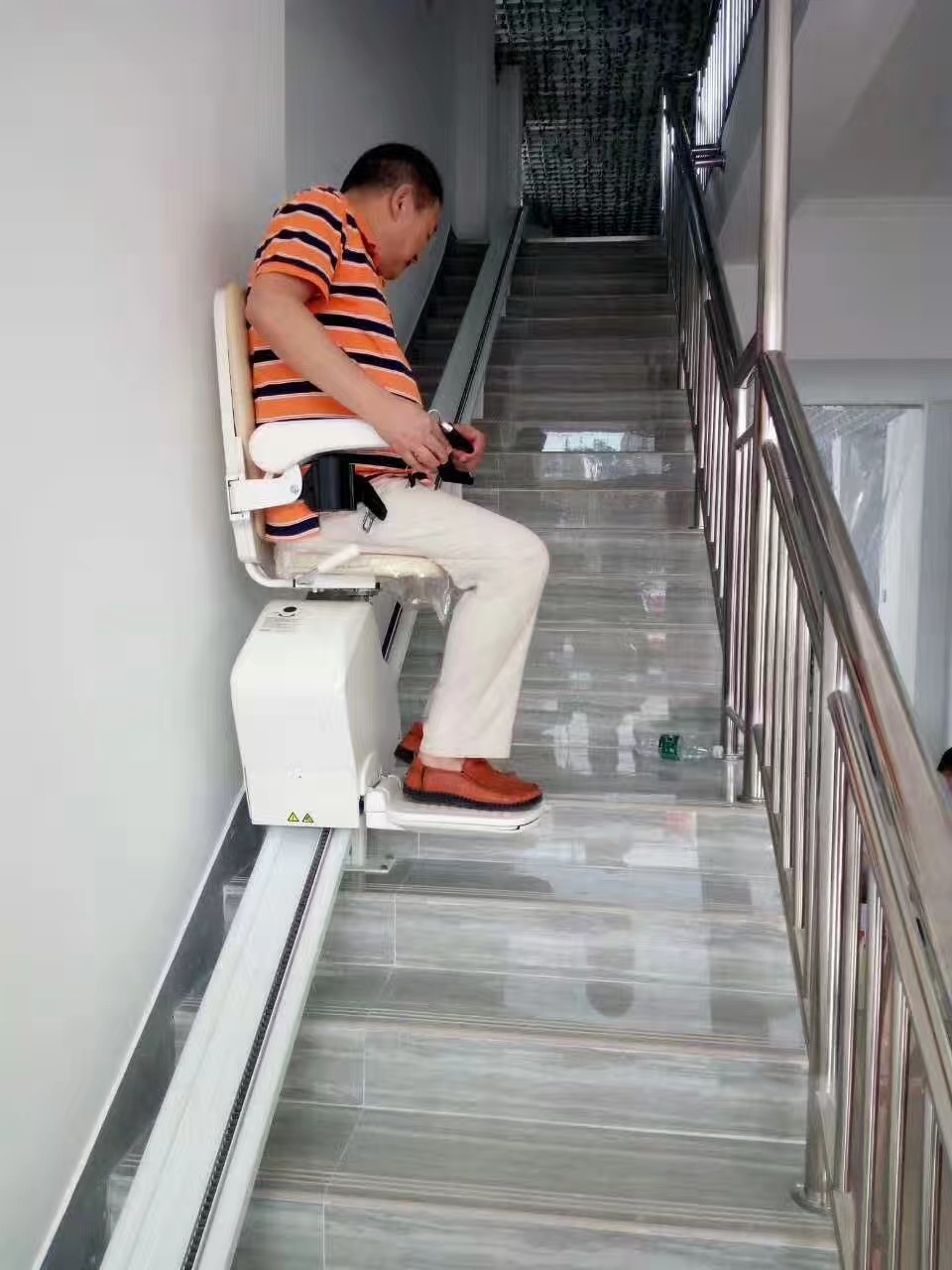

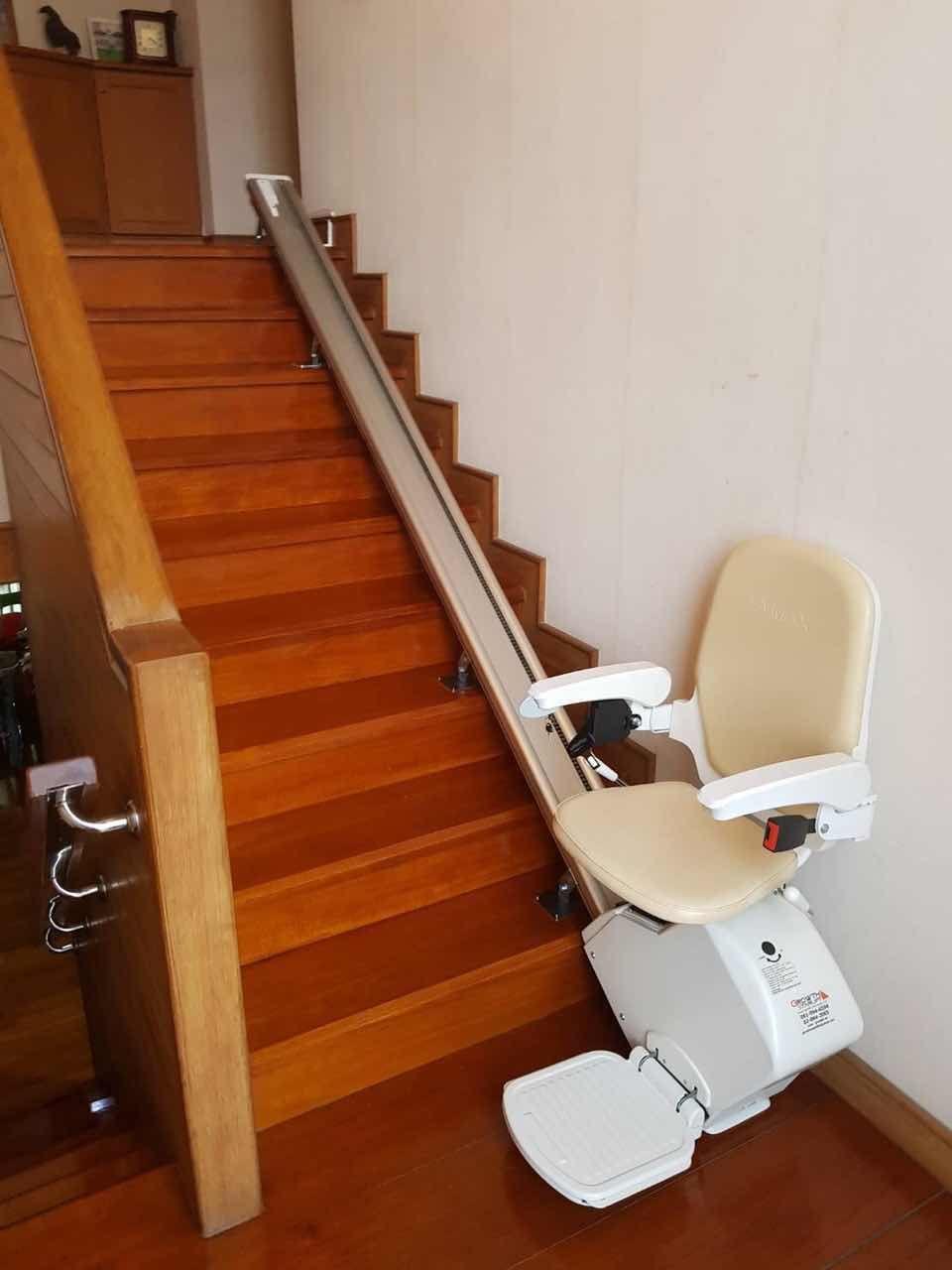

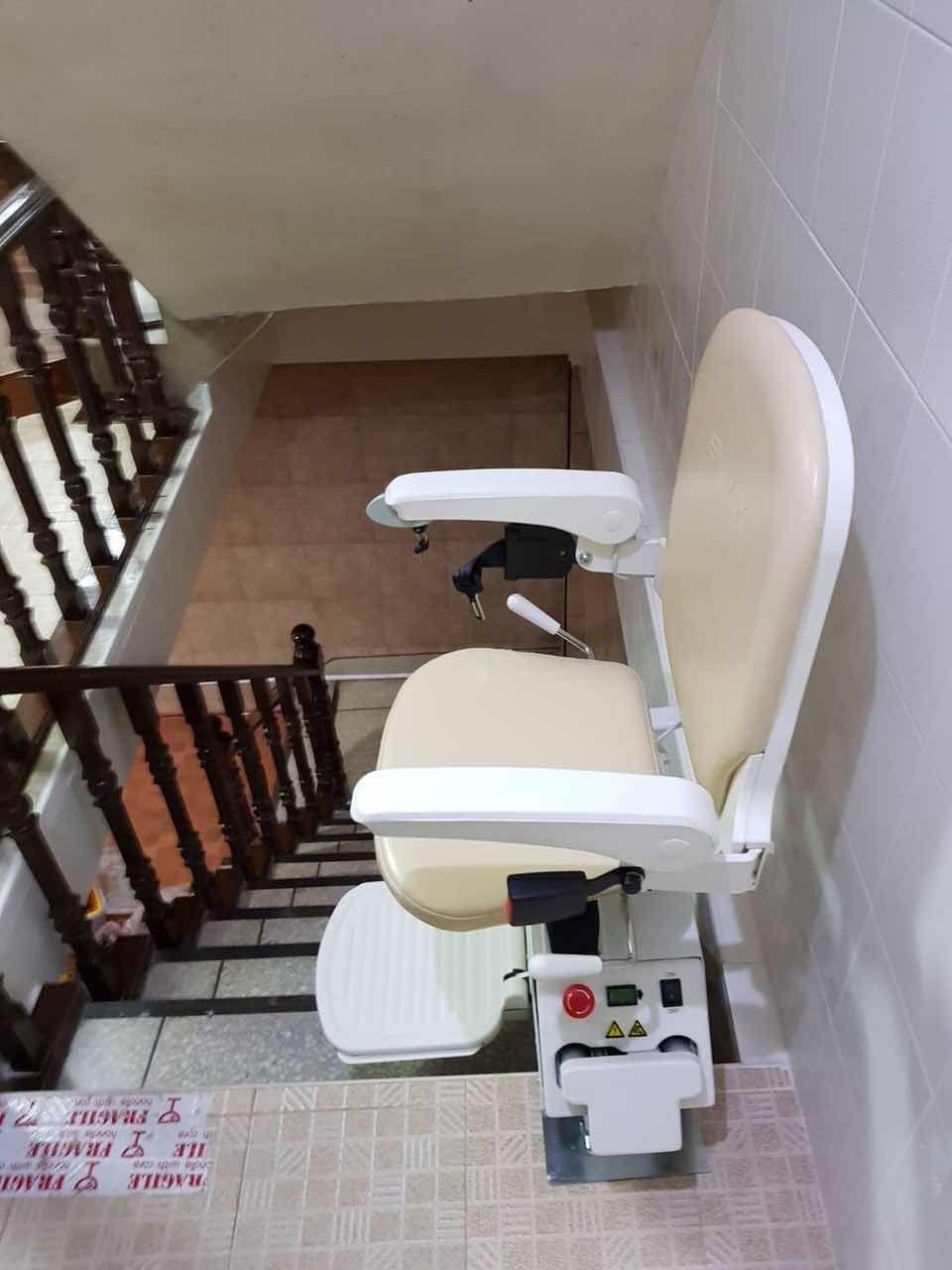

HomeGlide Stair Lift is the solution for any straight staircase and for a clean look. HomeGlide and HomeGlide Extra can be installed on stairs instead of walls. This allows the elevator to be installed quickly, easily, and with minimal damage to your home. HomeGlide has been designed to glide effortlessly over an aluminum piece, making it an attractive, elegant, and discreet addition to your home. HomeGlide, manufactured by using the latest technologies can be installed on almost any straight 740 mm staircase.

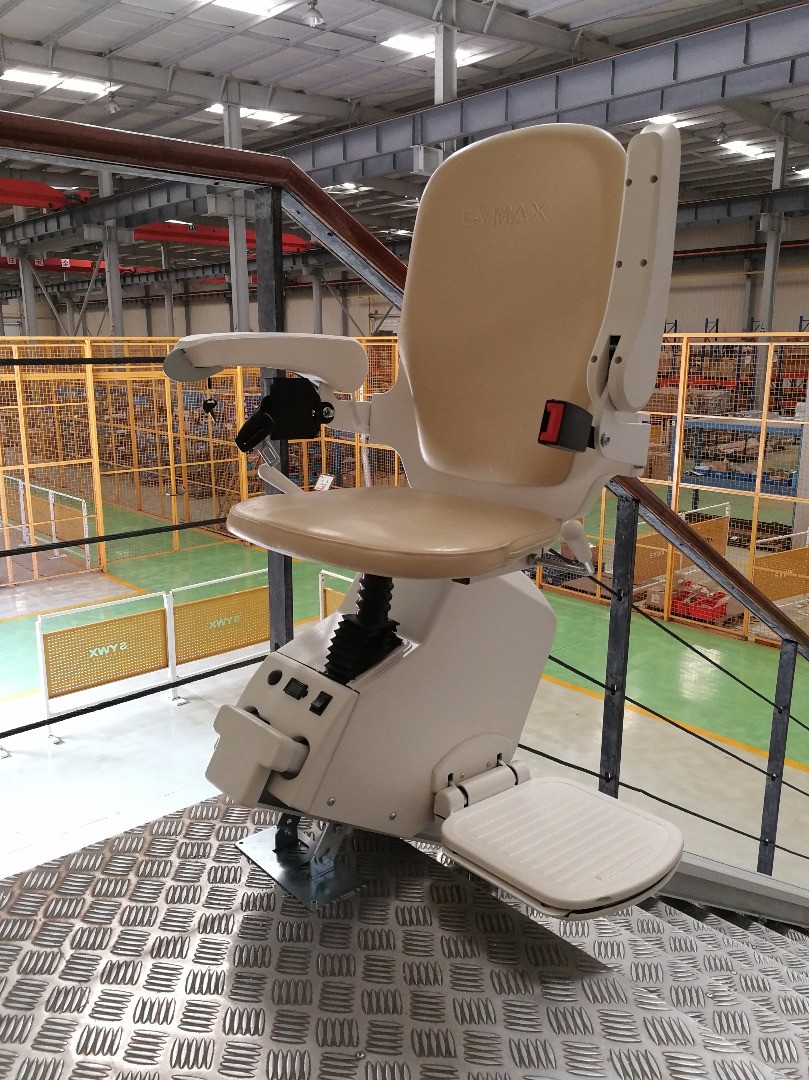

Design – Thick and luxurious padding provides a secure and comfortable seat. Sisal color with a neutral tone that will suit any home. Compact and discreet – the remote control allows HomeGlide to park either at the top or bottom of the stairs wherever you like. Safety – HomeGlide Stair Lift is certified according to Machinery Directive 2006/42 / EG and BS EN 81-40. If the lift encounters an obstacle, it will stop safely thanks to special safety devices located on the drive unit.

Product

Straight Stairs Indoors And Outdoors

Carrying Capacity

160 KG

Working Speed

0.10 M/S

Controllers

Remote Control

Platform Sizes

560/610/660 - 440/490/540

Motor

1/2 HP 0.37 KW

Working Power

24V (DC)

Main Power Requirement

110 / 220 V

Power Transmisson

Gear System

Rail System

Aluminum - Ral Painted Rail and Gear System

Overspeed Safety System

Safety System Available

* Resistance To External Factors
* Energy Saving Design
* Quick Charge System
* Custom Rail Length
* LCD
* Remote Control
* Slim Space-Saving Design
* Customizable Pillow And Backrest
* Customizable Armrest Width
* Weight And Obstacle Sensors
* Speed Protection
* Swivel Seat Lockout Protection
* Key Lock to Prevent Unauthorized Operation
* Continuous Operation In Case Of Power Outage
* Capacity : 350 lbs (160kg)
* Speed : 19,7 fpm (0,1 m / sn)
* Voltage : 110V-60Hz / 24V DC
* Drive Type : Rack and Pinion
* Max Inclination : 52 °
* Seat Width : 17 "-21" (440mm-540mm)
* Seat Height : 16,5 "(240mm)
* Folding Seat : 14 "(356mm
* Seat Turn : 45 ° / 90 °
* Foot Rest : 11.5: (290mm)
SEAT COLOURS
* Beige Colour (Standard)
* Sand Colour (Standard)
* Grey (Optional)
* Ivory Colour (Optional)
* Dark Red (Optional)
* Dark Brown (Optional)
