Supra

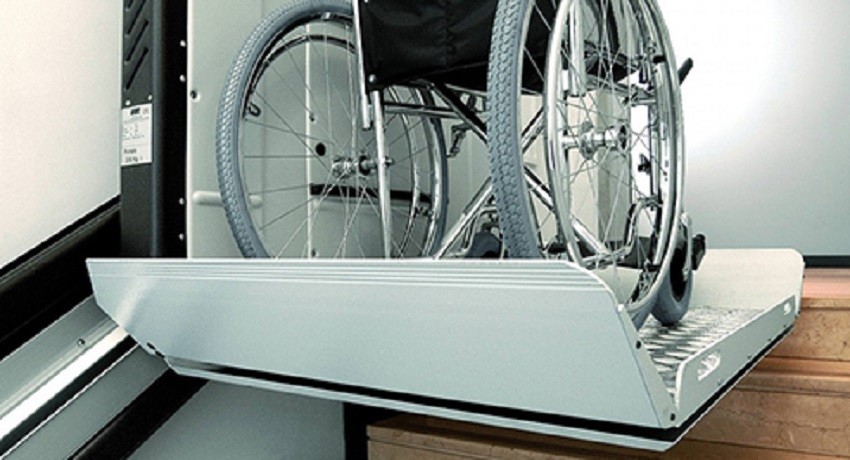

SUPRA – Special solution for stairs with curved and variable slopes. Suitable for indoor and outdoor use.  Once the platform has been installed, the stairs can be used from the moment it is fixed to the side. Supra is TÜV tested and CE certified. Particular attention has been paid to safety and quality.

This model allows wheelchair users to move up and go down without assistance. Control is carried out using buttons on the panel. If a person is not able to use the elevator himself, someone else can do it using a remote control.

Ergonomic Design – Supra features an advanced ergonomic design developed in consultation with renowned consumer associations. This allowed us to create one of the most comfortable and safest tilt platform lifts on the market. This allowed us to create one of the most comfortable and safest slope platform lifts on the market. An easy-to-use joystick or additional buttons allow the elevator to safely go up and go downstairs with minimal effort for the users.

Compact and Discreet – With its slim profile, the Supra takes up little space on stairs when not in use. The choice of parking options and platform sizes makes it ideal for busy buildings where space is limited.

Safety – The safety of our customers is of utmost importance to us. Supra is certified according to European Machinery Directive 2006/42 / EC.  They are equipped with shock and shear protection devices that stop the elevator immediately if they hit an obstacle on the stairs. To comply with European standards EN 81-40, an overload protection device must be added.

Product

Straight And Curved Stairs. Indoors And Outdoors

Carrying Capacity

250 kg (Optional 300 kg)

Working Speed

0,15 m/s

Controllers

Lightened Control Buttons That Require Continuous Pressing And Emergency Stop Button

Platform Sizes

700 x 750 mm / 800 x 900 mm / 800 x 1.050mm / 800x 1.200mm

Motor

1.5 kW Single-Phase Motor Located At The End Of The Guide Rails

Working Power

208-240 VAC, 50Hz, Monofaze.

Main Power Requirement

208-240 VAC, 50Hz, Monofaze.

Power Transmisson

Traction System

Rail System

Steel Tube Profile Guide Rails With a Diameter of 51 mm, Positioned Vertically 600 mm Apart

Overspeed Safety System

Mechanical Overspeed Safety Sensor Located At The Lowest Part Of The Rail System And Mechanical Brake With Electrical Shutdown Function

Call And Send Controls at Stations
Safety Barrier Arms
Lightened Control Buttons on the Platform
Soft Start and Stop
Pedestrian Safety Warning Lighting
Non-Slip Platform Floor
Platform Subfloor Safety Sensors
Platform Side Ramps Safety Sensors
Optical Safety Sensors On Platform Sidewalls
Audible / Visual Warning and Battery Emergency Stop System
Overload Warning System with Audible / Visual Warning
Custom Sized Platform
Special RAL Colors or Satin Stainless
Fully Automatic Unfolding / Folding Platform
Additional Folding Seat on Platform
Companion Hand Controller
Anti-Vandal Platform Lock
Fire Alarm Integration
Audible and Visual Warning Alarm
Automatic 3rd Side Ramp
