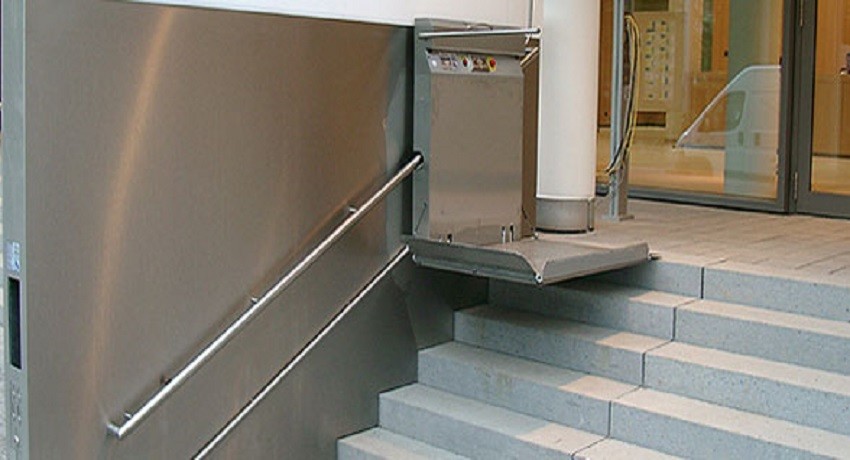

Supra Linea

The Supra Linea is a lifting platform on which you can go up and go down by stairs in a wheelchair. Special solution for spiral, curved or straight staircases; suitable for indoor and outdoor use. Once the platform has been installed, the stairs can be used from the moment it is fixed to the side.

If necessary, you can reinstall our elevator in a different location and operate it from the right or left side. If you are transporting the elevator to a completely different location, it is enough to simply replace the rails, the base unit does not need to be replaced.

Ergonomic Design – the Supra Linea features an advanced ergonomic design developed in consultation with renowned consumer associations. This allowed us to create one of the most comfortable and safest slope platform lifts on the market. An easy-to-use joystick or additional buttons allow the elevator to safely go up and go downstairs with minimal effort for the user.

Compact and DiscreetSupra Linea‘s slim profile takes up little space on stairs when not in use. The choice of parking options and platform sizes makes it ideal for busy buildings where space is limited.

Safety – The safety of our customers is of utmost importance to us. Supra Linea is certified according to European Machinery Directive 2006/42 / EC. They are equipped with shock and shear protection devices that stop the elevator immediately if they hit an obstacle on the stairs. To comply with European standards EN 81-40, an overload protection device must be added.

Product

Straight Stairs. Indoors And Outdoors

Carrying Capacity

250 kg

Working Speed

0,10 m/s

Controllers

Locked Controls That Require Constant Pressure at Stations

Platform Sizes

700 x 750 mm / 800 x 900 mm / 800 x 1050mm

Motor

24 Voltage Motor ve IP 54 Safety

Working Power

2 x 12 VDC, 7.2Ah Battery

Main Power Requirement

208-240 VAC, 50Hz, Monofaze.

Power Transmisson

Roller and Gear System

Rail System

Champagne Color Aluminum Rail and Gear System

Overspeed Safety System

Mechanical And Electronic Brake With Overspeed Safety Sensor

Call and Send Controls at Stations
Safety Barrier Arms
Lightened Control Buttons on the Platform
Soft Start and Stop
Pedestrian Safety Warning Lighting
Non-Slip Platform Floor
Platform Subfloor Safety Sensors
Platform Side Ramps Safety Sensors
Optical Safety Sensors On Platform Sidewalls
Audible / Visual Warning and Battery Emergency Stop System
Overload Warning System with Audible / Visual Warning
Custom Sized Platform
Special RAL Colors
Fully Automatic Unfolding / Folding Platform
Additional Folding Seat on Platform
Companion Hand Controller
Fire Alarm Integration
Audible and Visual Warning Alarm
Automatic 3rd Side Ramp
